A1

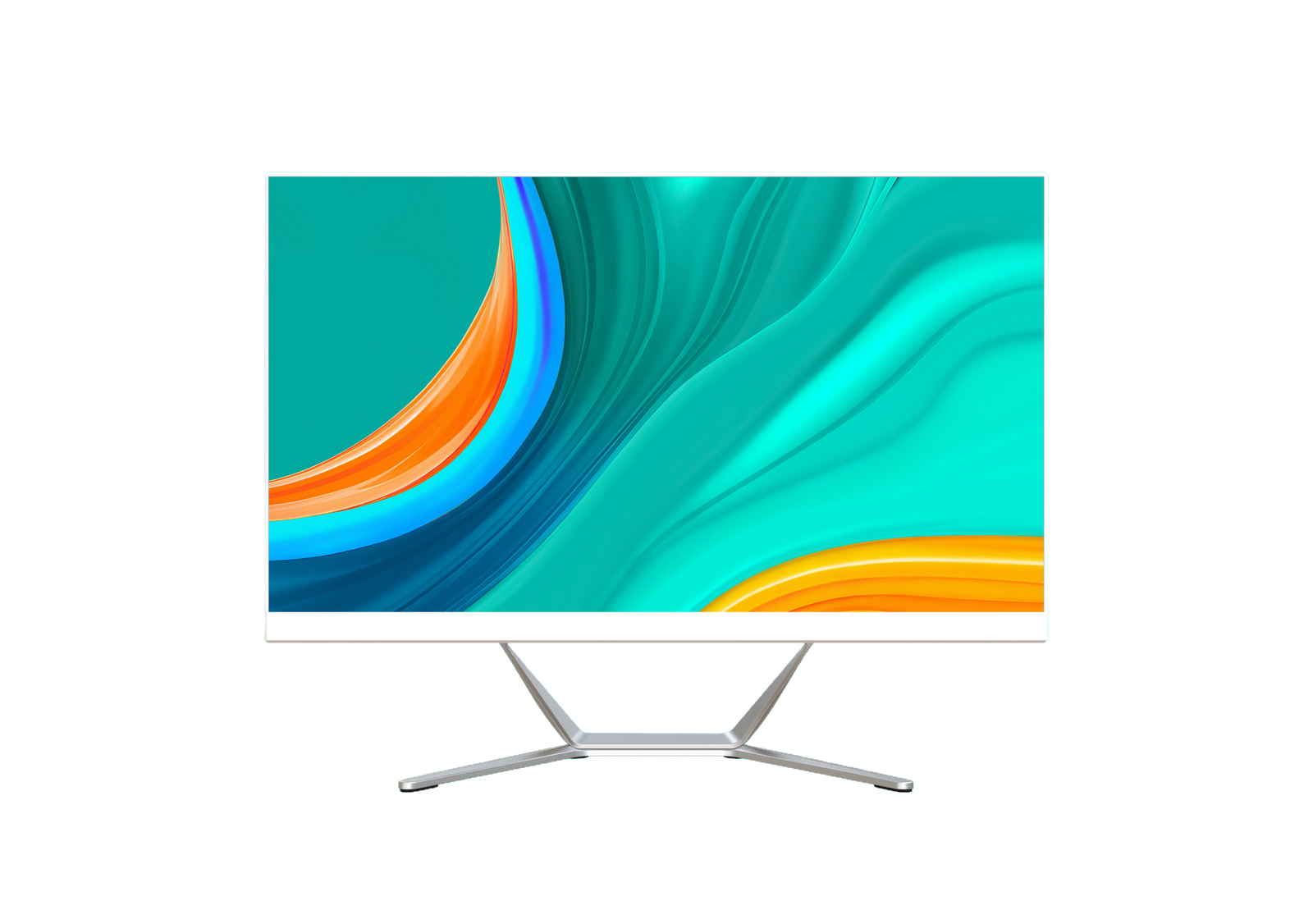

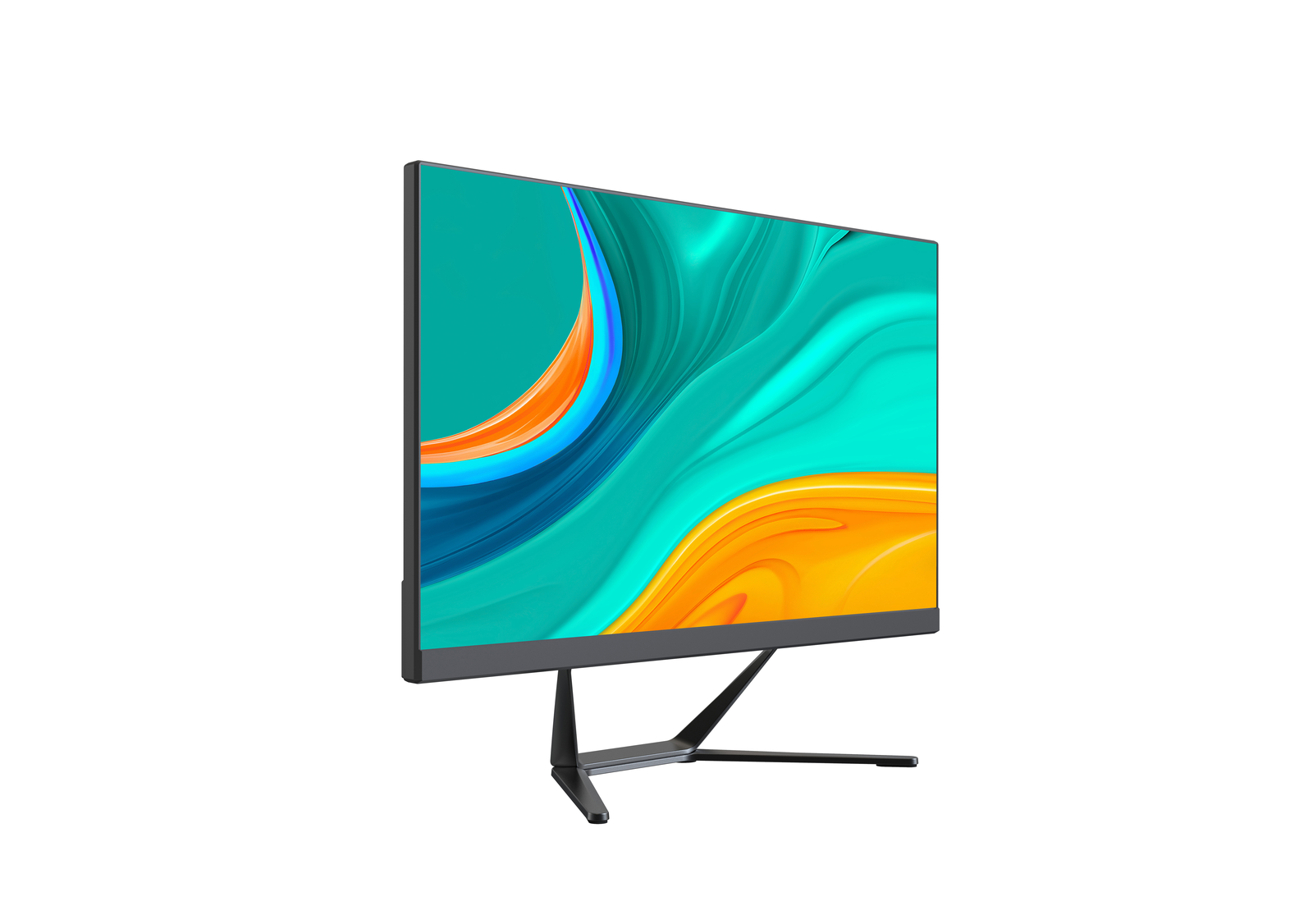

All-in-one PC with 23.8″ IPS display and VESA wall-mount support, Windows 10 / 11 / Linux pre-installed, one-key recovery.

Send the model, quantity and destination port. We reply within one business day.

Operating System	Windows 10 / Windows 11 / Linux, any language version, pre-installed on request
System Recovery	One-key recovery from a hidden partition (press F1 at boot), no disc or USB drive needed
Screen	23.8" IPS / 1920 x 1080 / 16:9 / 60Hz / 300 cd/m² / 16.7M colors
Product Size (L x W x H)	541.45 x 325.4 x 65.12 mm
Net / Gross Weight	5 kg
Wall Mount	Supported / VESA 100 x 100 mm / M4 screws
Stand	Fixed bracket (lifting bracket optional) / tilt -5°~+20°
Camera	300 W / 500 W optional
Speaker	2 x 2 W built-in
Wireless	Wi-Fi 2.4 GHz / 5 GHz Dual Band / Bluetooth
Power Input	External adapter 19V 6.3 A / ≤120 W
Front I/O	DC-in x 1 / HDMI 1.4 x 1 / VGA x 1 / USB3.0 x 4 / RJ45 x 1 / Audio-out x 1 / MIC-in x 1

#	Model	CPU	Chipset	Memory	Storage
1	A1-01	Intel Core i3-3220	H61	DDR3 1600 8 GB	128 GB
2	A1-02	Intel Core i5-3470	H61	DDR3 1600 8 GB	256 GB
3	A1-03	Intel Core i3-7100	H110	DDR3 1600 8 GB	256 GB
4	A1-04	Intel Core i3-8100	H110	DDR3 1600 8 GB	256 GB
5	A1-05	Intel Core i3-8100	H110	DDR3 1600 8 GB x 2 Dual-Channel	256 GB
6	A1-06	Intel Core i3-8100	H110	DDR3 1600 8 GB x 2 Dual-Channel	512 GB
7	A1-07	Intel Core i7-8700	H110	DDR3 1600 8 GB x 2 Dual-Channel	512 GB
8	A1-08	Intel Core i3-14100	H610	DDR4 3200 8 GB x 2 Dual-Channel	512 GB

Configurations are built to order. Send us the row you need and we will quote the quantity you are planning.

SKU: A1 Category: All-in-One PCs

Description

All-in-One PC A1. Integrated display and PC in one clean unit.

Operating system. Windows 10 / Windows 11 / Linux, any language version, pre-installed on request.

One-key recovery. One-key recovery from a hidden partition (press F1 at boot), no disc or USB drive needed.

Screen. 23.8″ IPS / 1920 x 1080 / 16:9 / 60Hz / 300 cd/m² / 16.7M colors.

Wall Mount. Supported / VESA 100 x 100 mm / M4 screws.

Stand. Fixed bracket (lifting bracket optional) / tilt -5°~+20°.

Product Size (L x W x H). 541.45 x 325.4 x 65.12 mm.

Net / Gross Weight. 5 kg.

Hardware configurations. The configuration list below shows the CPU, chipset, memory and storage combinations available.
