OEM / ODM · Mixed Container · Flexible MOQ
Micro-ATX / ITX PC case, full SPCC paint finish, fits GPUs up to 280 mm.
Send the model, quantity and destination port. We reply within one business day.
| Metal Size (L x W x H) | 285 x 195 x 380 mm |
|---|---|
| Product Size (L x W x H) | 320 x 195 x 395 mm |
| Carton Size (L x W x H) | 438 x 243 x 373 mm |
| Material / Thickness | 0.4 mm SPCC / Full paint |
| Net / Gross Weight | 2.85 kg / 3.55 kg |
| Motherboard Support | Micro-ATX / ITX |
| Optical Drive Support | No |
| HDD Support | 3.5" x 1 (compatible 2.5" x 1) |
| SSD Support | 2.5" x 2 |
| PSU Support | Bottom-mounted ATX |
| CPU Cooler Height Limit | 165 mm |
| GPU Length Limit | 280 mm |
| Front I/O | USB2.0*2+USB3.0*1+AUDIO/MIC |
| Expansion Slots | 4 |
| Cooling Support | Top 120 mm x 2 / Bottom 120 mm x 2 / Back 120 mm x 1 / Front 120 mm x 3 |
| Container Loading | 1700pcs/40HQ |

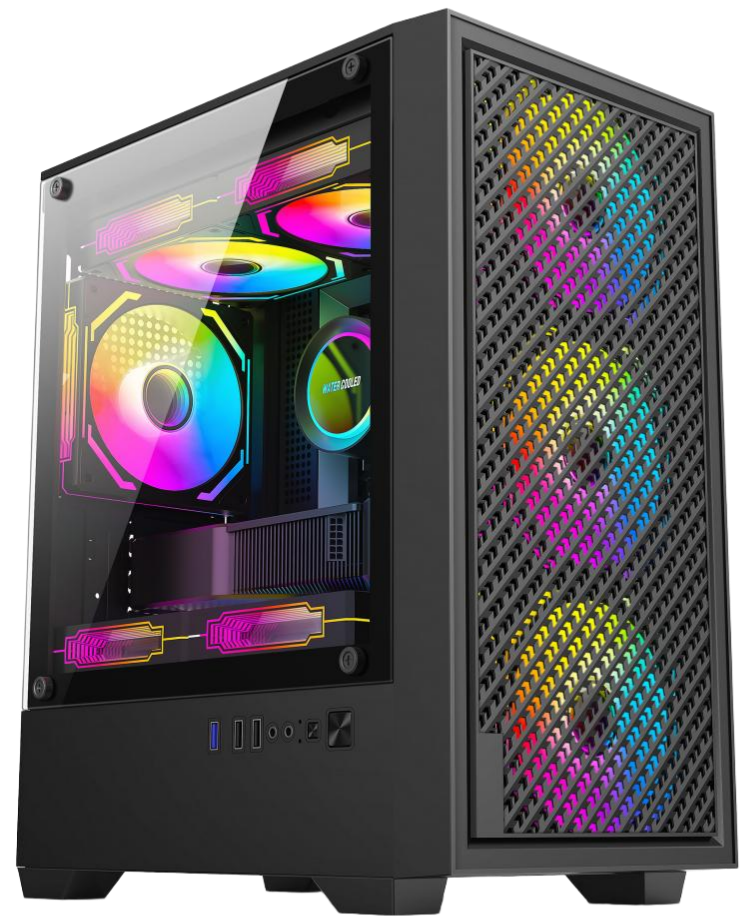

Gaming PC case CG08-E. Micro-ATX / ITX motherboard support, 0.4 mm SPCC / Full paint. Metal size 285 x 195 x 380 mm.
What it fits. graphics cards up to 280 mm, CPU coolers up to 165 mm, 3.5″ x 1 (compatible 2.5″ x 1) HDD, 2.5″ x 2 SSD, Bottom-mounted ATX power supply.
Cooling. Top 120 mm x 2 / Bottom 120 mm x 2 / Back 120 mm x 1 / Front 120 mm x 3.
Front I/O. USB2.0*2+USB3.0*1+AUDIO/MIC.
Logistics. Carton size 438 x 243 x 373 mm, 1700pcs/40HQ per 40HQ container.
