OEM / ODM · Mixed Container · Flexible MOQ
E-ATX / ATX / Micro-ATX PC case with glass front and side panels, full SPCC paint finish, fits GPUs up to 430 mm.
Send the model, quantity and destination port. We reply within one business day.
| Metal Size (L x W x H) | 465 x 220 x 430 mm |
|---|---|
| Product Size (L x W x H) | 465 x 220 x 445 mm |
| Carton Size (L x W x H) | 500 x 285 x 565 mm |
| Material / Thickness | 0.6 mm SPCC / Full paint + side + front glass panel |
| Net / Gross Weight | 5.25 kg / 6.5 kg |
| Motherboard Support | E-ATX / ATX / Micro-ATX |
| Optical Drive Support | No |
| HDD Support | 3.5" x 1 |
| SSD Support | 2.5" x 2 |
| PSU Support | Side-mounted ATX |
| CPU Cooler Height Limit | 170 mm |
| GPU Length Limit | 430 mm |
| Front I/O | USB2.0*2+USB3.0*1+HD-AUDIO/MIC |
| Expansion Slots | 7 |
| Cooling Support | Top 120 mm x 3 / Bottom 120 mm x 3 / Back 120 mm x 1 / Side 120 mm x 2 |
| Container Loading | 826pcs/40HQ |

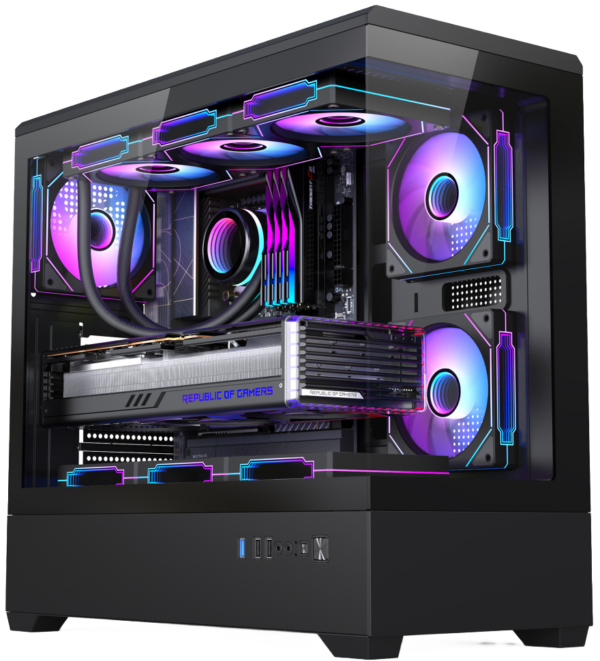

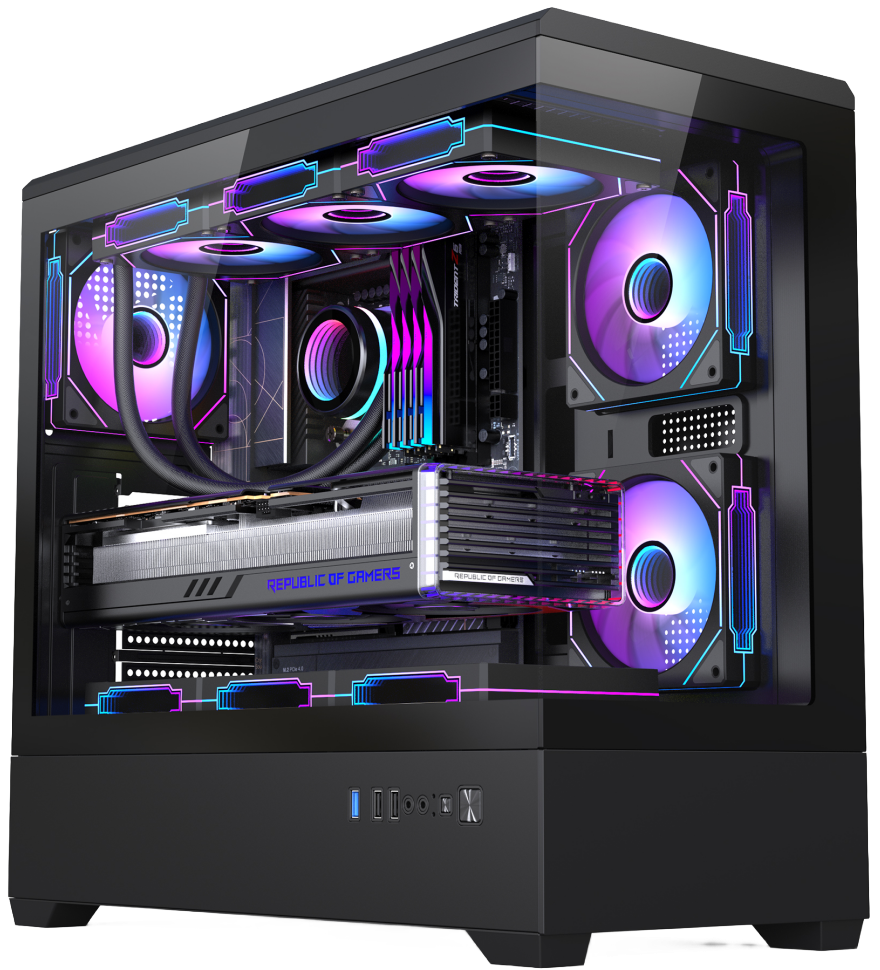

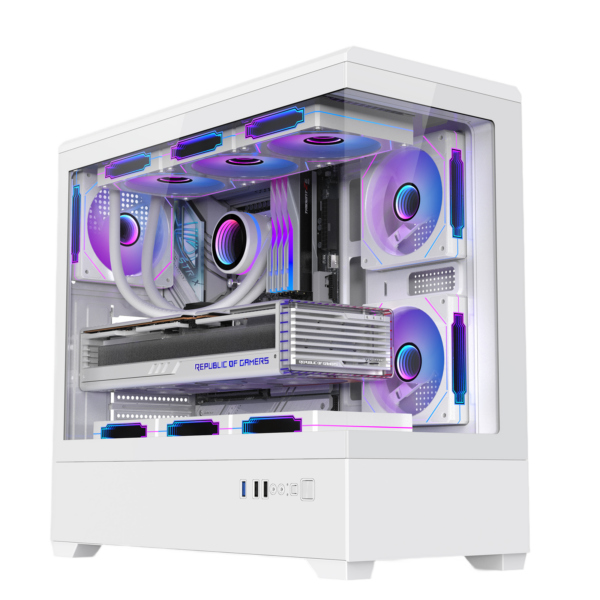

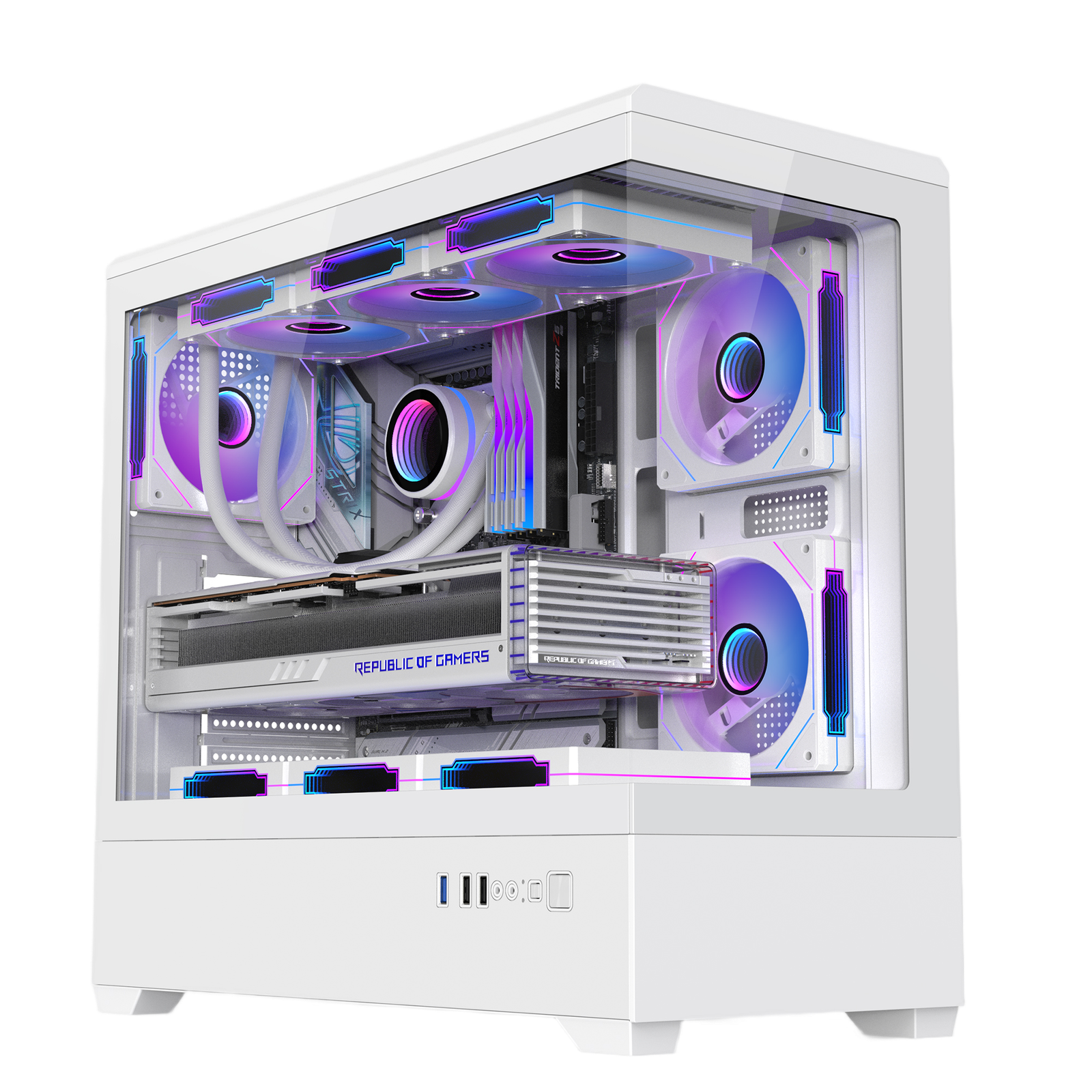

Gaming PC case CG09-B. E-ATX / ATX / Micro-ATX motherboard support, 0.6 mm SPCC / Full paint + side + front glass panel. Metal size 465 x 220 x 430 mm.
What it fits. graphics cards up to 430 mm, CPU coolers up to 170 mm, 3.5″ x 1 HDD, 2.5″ x 2 SSD, Side-mounted ATX power supply.
Cooling. Top 120 mm x 3 / Bottom 120 mm x 3 / Back 120 mm x 1 / Side 120 mm x 2.
Front I/O. USB2.0*2+USB3.0*1+HD-AUDIO/MIC.
Logistics. Carton size 500 x 285 x 565 mm, 826pcs/40HQ per 40HQ container.
