ATX / Micro-ATX (support back-plug) PC case, full SPCC paint finish, fits GPUs up to 380 mm.
Send the model, quantity and destination port. We reply within one business day.
| Metal Size (L x W x H) | 420 x 285 x 400 mm |
|---|---|
| Product Size (L x W x H) | 420 x 285 x 425 mm |
| Carton Size (L x W x H) | 476 x 345 x 487 mm |
| Material / Thickness | 0.5 mm SPCC / Full paint |
| Net / Gross Weight | 5.0 kg / 6.3 kg |
| Motherboard Support | ATX / Micro-ATX (support back-plug) |
| Optical Drive Support | No |
| HDD Support | 3.5" x 2 |
| SSD Support | 2.5" x 2 |
| PSU Support | Side-mounted ATX |
| CPU Cooler Height Limit | 168 mm |
| GPU Length Limit | 380 mm |
| Front I/O | USB2.0*2+USB3.0*1+HD-AUDIO/MIC |
| Expansion Slots | 7 |
| Cooling Support | Top 120 mm x 3 / Bottom 120 mm x 3 / Back 120 mm x 1 / Side 120 mm x 3 |
| Container Loading | 835pcs/40HQ |

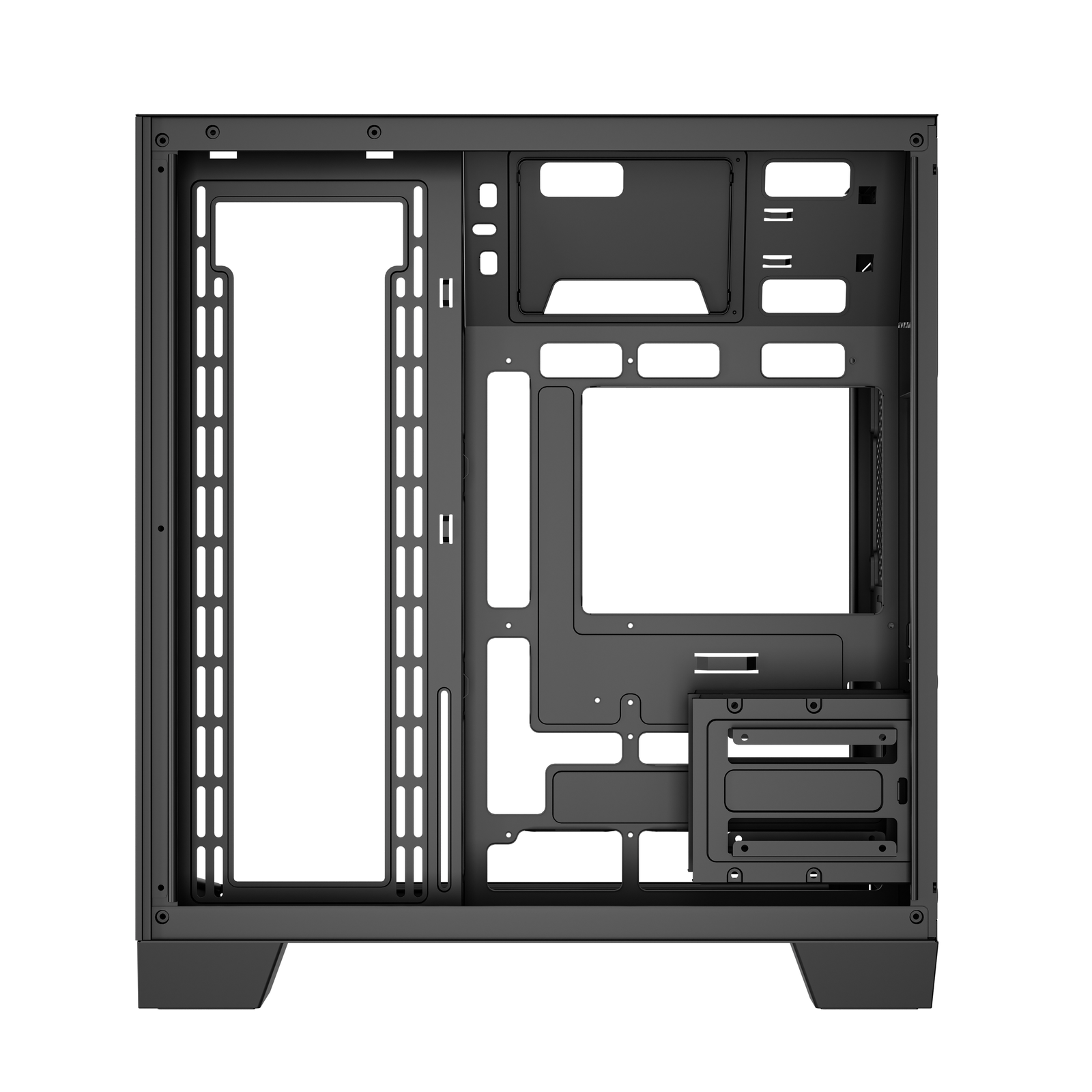

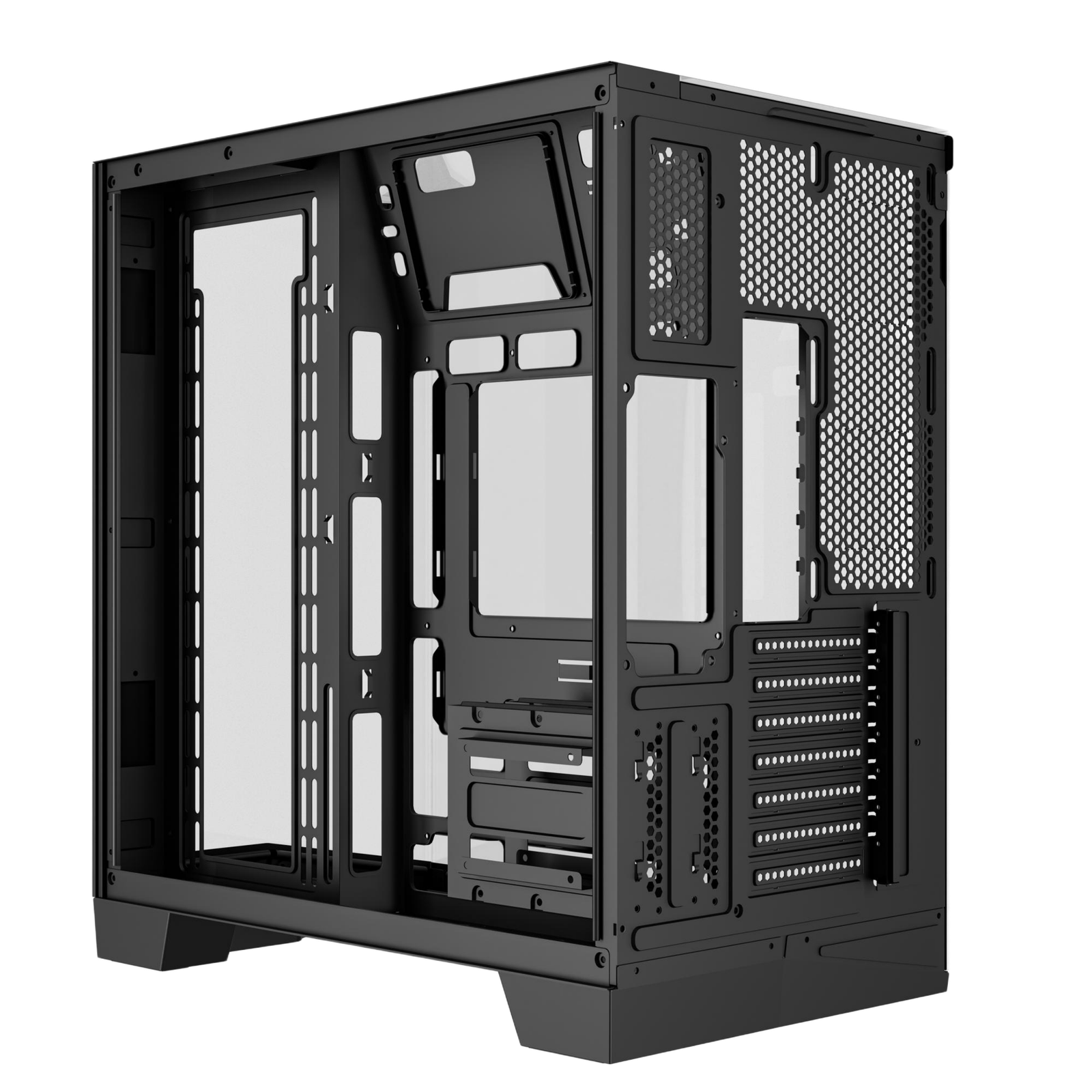

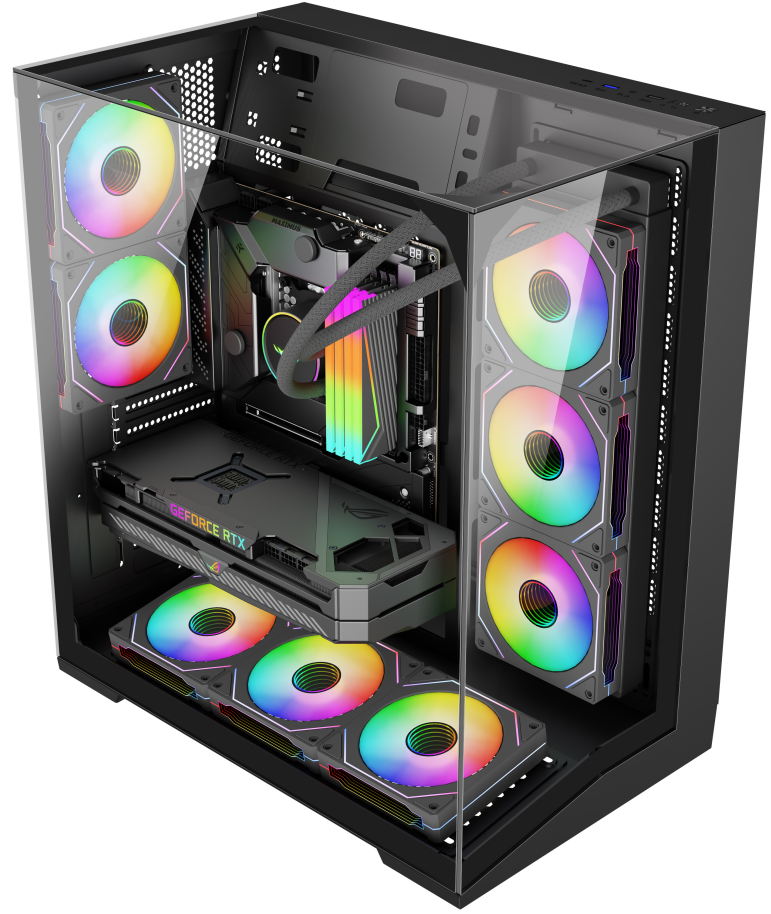

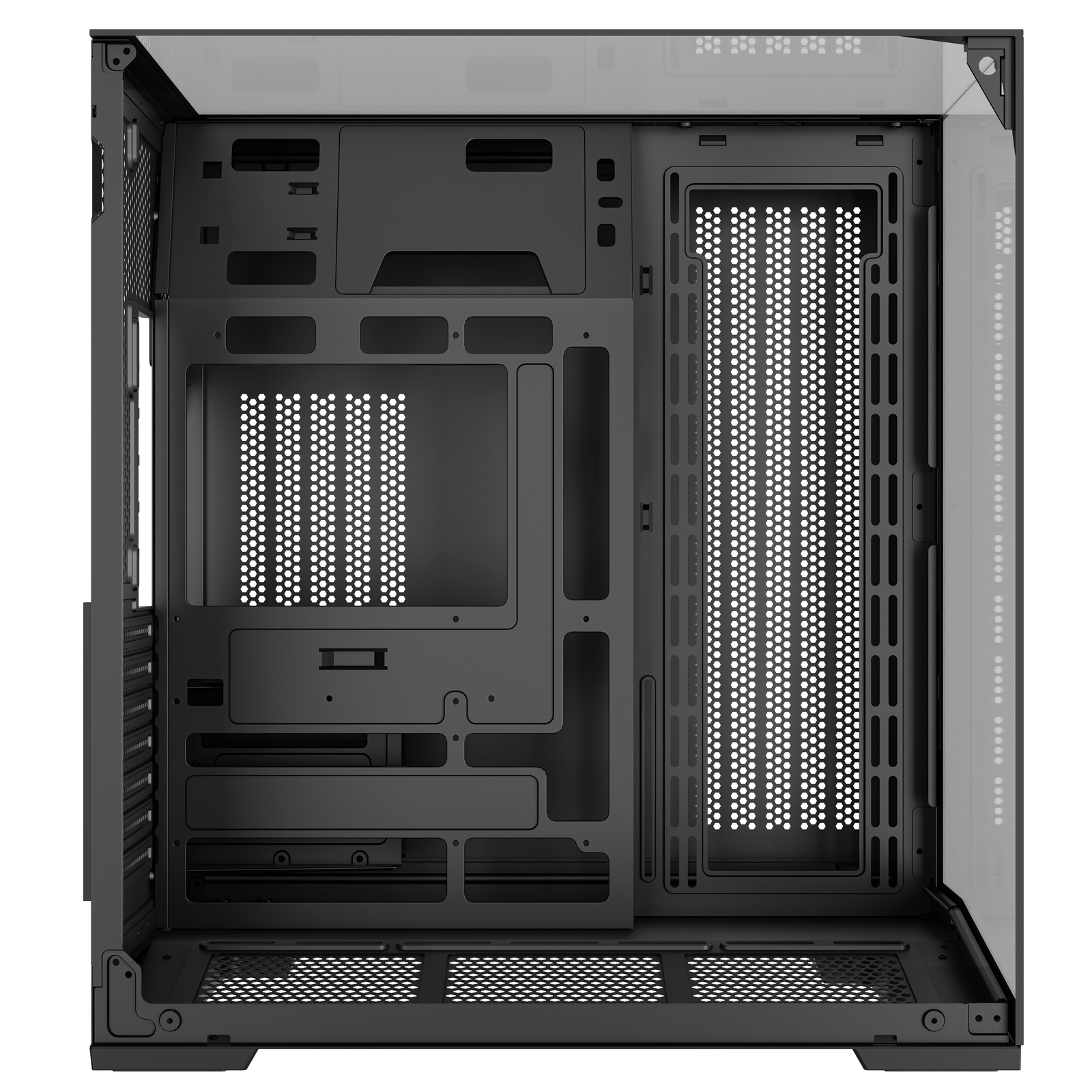

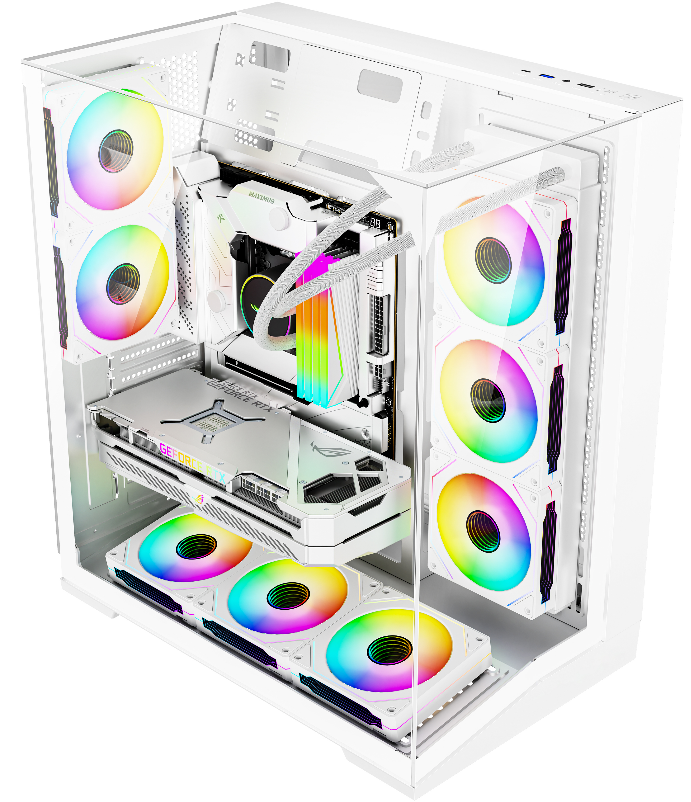

Gaming PC case CG17-B. ATX / Micro-ATX (support back-plug) motherboard support, 0.5 mm SPCC / Full paint. Metal size 420 x 285 x 400 mm.
What it fits. graphics cards up to 380 mm, CPU coolers up to 168 mm, 3.5″ x 2 HDD, 2.5″ x 2 SSD, Side-mounted ATX power supply.
Cooling. Top 120 mm x 3 / Bottom 120 mm x 3 / Back 120 mm x 1 / Side 120 mm x 3.
Front I/O. USB2.0*2+USB3.0*1+HD-AUDIO/MIC.
Logistics. Carton size 476 x 345 x 487 mm, 835pcs/40HQ per 40HQ container.
