OEM / ODM · Mixed Container · Flexible MOQ

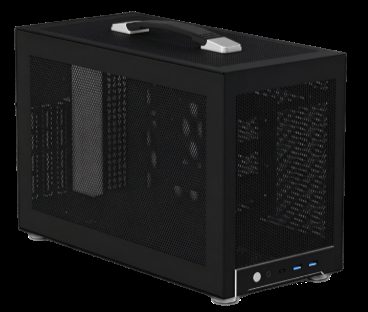

ITX aluminum-steel PC case with mesh panels and carry handle, fits GPUs up to 335 mm.
Send the model, quantity and destination port. We reply within one business day.
| Product Size (L x W x H) | 350 x 165 x 230 mm |
|---|---|
| Carton Size (L x W x H) | 360 x 230 x 330 mm |
| Material / Thickness | 1.0 – 1.5 mm Steel+Aluminum |
| Net / Gross Weight | 2.28 kg / 2.85 kg |
| Motherboard Support | ITX (170 x 170 mm) |
| SSD Support | 2.5" x 1 |
| PSU Support | ATX / SFX / SFX-X |
| CPU Cooler Height Limit | 75 mm |
| GPU Length Limit | 335 mm |
| Front I/O | USB3.0*2+Type-C+AUDIO |
| Expansion Slots | 4 |
| Cooling Support | Top 120 mm x 2 |
| Container Loading | 2250pcs/40HQ |
Business PC case CW02. ITX (170 x 170 mm) motherboard support, 1.0 – 1.5 mm Steel+Aluminum.

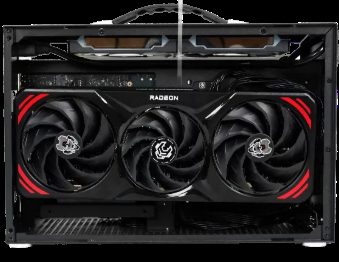

What it fits. graphics cards up to 335 mm, CPU coolers up to 75 mm, 2.5″ x 1 SSD, ATX / SFX / SFX-X power supply.
Cooling. Top 120 mm x 2.
Front I/O. USB3.0*2+Type-C+AUDIO.
Logistics. Carton size 360 x 230 x 330 mm, 2250pcs/40HQ per 40HQ container.
