OEM / ODM · Mixed Container · Flexible MOQ
Micro-ATX / ITX PC case, full SPCC paint finish, fits GPUs up to 345 mm.
Send the model, quantity and destination port. We reply within one business day.
| Metal Size (L x W x H) | 353 x 210 x 400 mm |
|---|---|
| Product Size (L x W x H) | 350 x 210 x 380 mm |
| Carton Size (L x W x H) | 453 x 272 x 414 mm |
| Material / Thickness | 0.4-0.45 mm SPCC / Full paint |
| Net / Gross Weight | 3.7 kg / 4.55 kg |
| Motherboard Support | Micro-ATX / ITX |
| Optical Drive Support | No |
| HDD Support | 3.5" x 1 |
| SSD Support | 2.5" x 1 |
| PSU Support | Bottom-mounted ATX |
| CPU Cooler Height Limit | 165 mm |
| GPU Length Limit | 345 mm |
| Front I/O | USB2.0*1+USB3.0*1+AUDIO/MIC |
| Expansion Slots | 7 |
| Cooling Support | Back 120 mm x 1 / Top 120 mm x 2 / Bottom 120 mm x 2 / Side 120 mm x 2 |
| Container Loading | 1340pcs/40HQ |

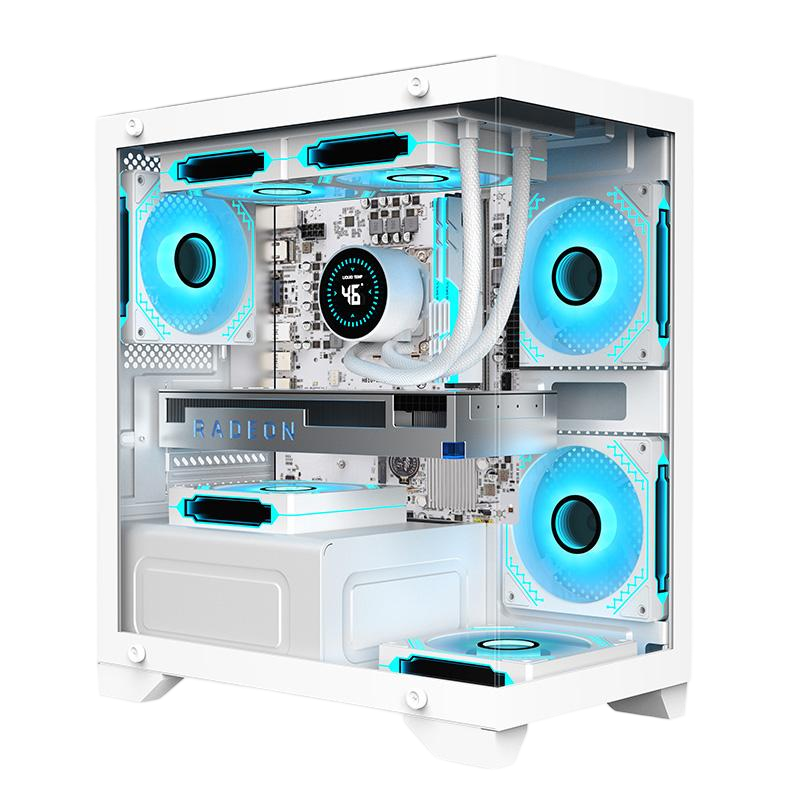

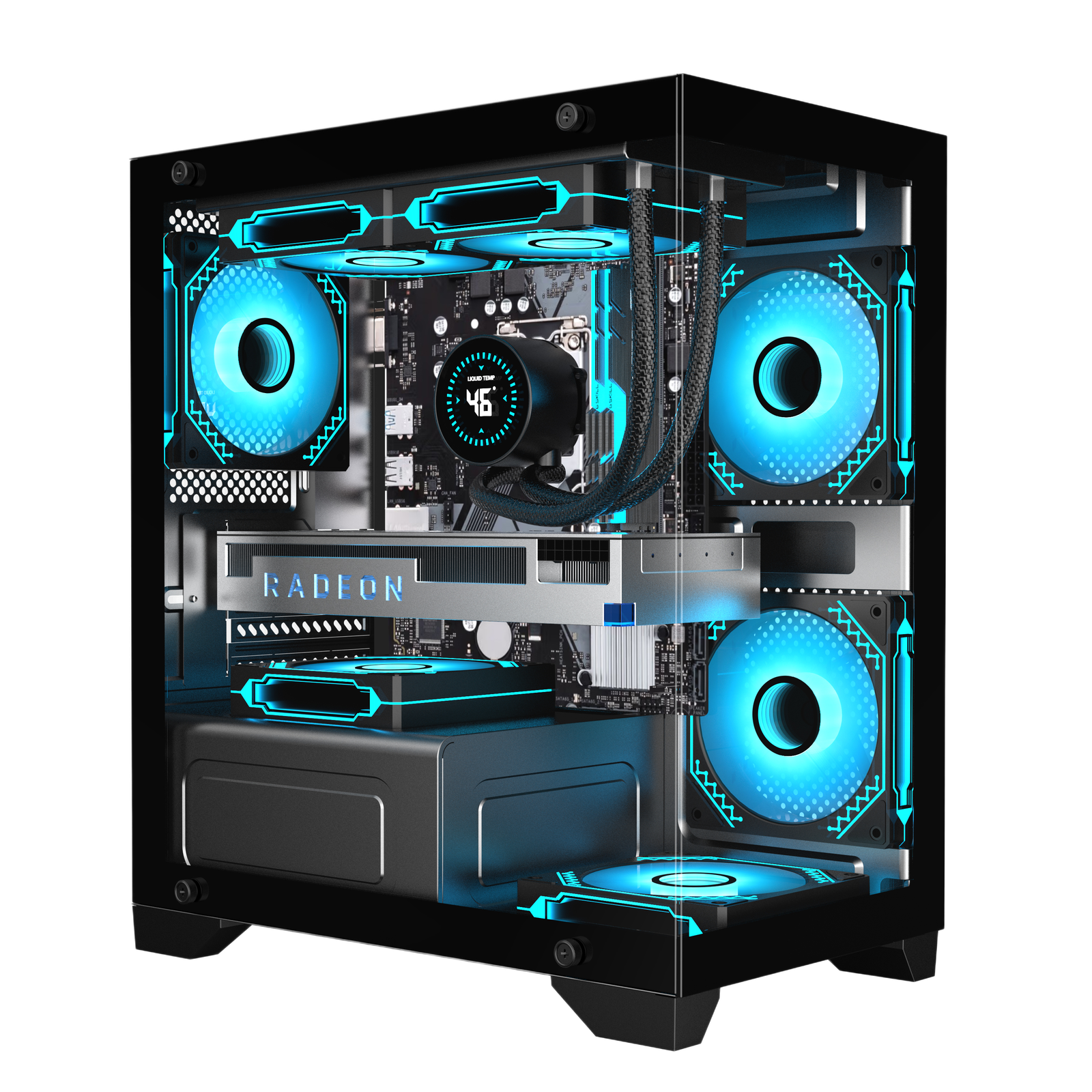

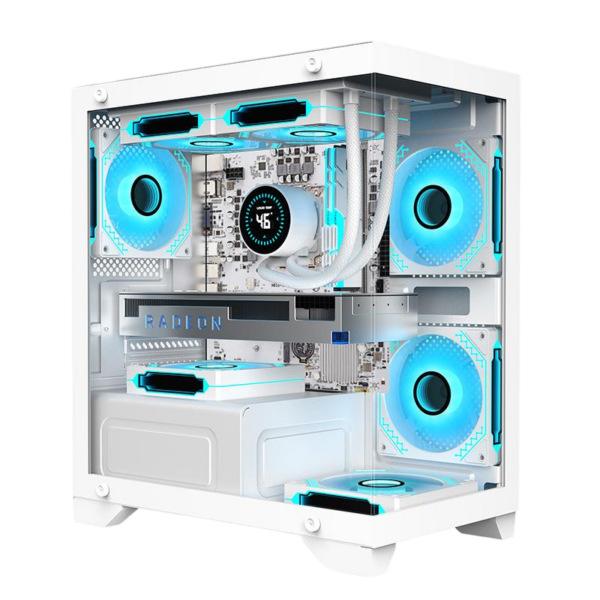

Gaming PC case CG03. Micro-ATX / ITX motherboard support, 0.4-0.45 mm SPCC / Full paint. Metal size 353 x 210 x 400 mm.

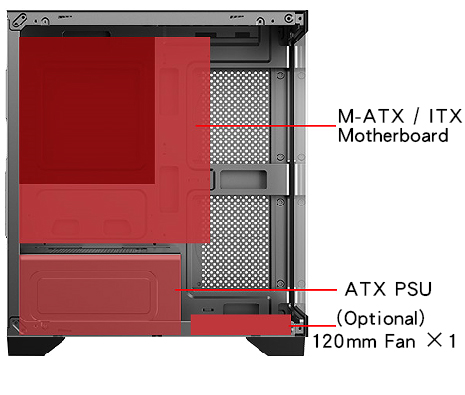

What it fits. graphics cards up to 345 mm, CPU coolers up to 165 mm, 3.5″ x 1 HDD, 2.5″ x 1 SSD, Bottom-mounted ATX power supply.
Cooling. Back 120 mm x 1 / Top 120 mm x 2 / Bottom 120 mm x 2 / Side 120 mm x 2.
Front I/O. USB2.0*1+USB3.0*1+AUDIO/MIC.
Logistics. Carton size 453 x 272 x 414 mm, 1340pcs/40HQ per 40HQ container.
