OEM / ODM · Mixed Container · Flexible MOQ
Compact ITX mini PC in a 290 x 97 x 330 mm chassis, Dual-Band Wi-Fi / BT, multiple hardware configurations available.
Send the model, quantity and destination port. We reply within one business day.
| Product Size (L x W x H) | 290 x 97 x 330 mm |
|---|---|
| Carton Size (L x W x H) | 375 x 145 x 335 mm |
| Net / Gross Weight | 1.43 kg / 1.8 kg |
| Motherboard Support | 245 x 245 mm Micro-ATX |
| Front I/O | USB2.0*2+USB3.0*1+AUDIO/MIC |
| SSD Support | 2.5" x 1 / 3.5" x 1 |
| CPU Cooler Height Limit | 75 mm |
| Cooling Support | Top 60 mm x 2 / Bottom 60 mm x 2 |
| Wireless | Wi-Fi 2.4 GHz / 5 GHz Dual Band / Bluetooth |
| Power Input | 1U/TFX |
| # | CPU | Memory | Storage |
|---|---|---|---|
| 1 | Intel Core i3-3220 | DDR3 1600 8 GB | 128 GB |
| 2 | Intel Core i5-3470 | DDR3 1600 8 GB | 256 GB |
| 3 | Intel Core i3-7100 | DDR3 1600 8 GB | 256 GB |
| 4 | Intel Core i3-8100 | DDR3 1600 8 GB | 256 GB |
| 5 | Intel Core i3-8100 | DDR3 1600 8 GB x 2 Dual-Channel | 512 GB |
| 6 | Intel Core i7-8700 | DDR3 1600 8 GB x 2 Dual-Channel | 512 GB |
| 7 | Intel Core i3-14100 | DDR3 1600 8 GB x 2 Dual-Channel | 512 GB |
Configurations are built to order. Send us the row you need and we will quote the quantity you are planning.

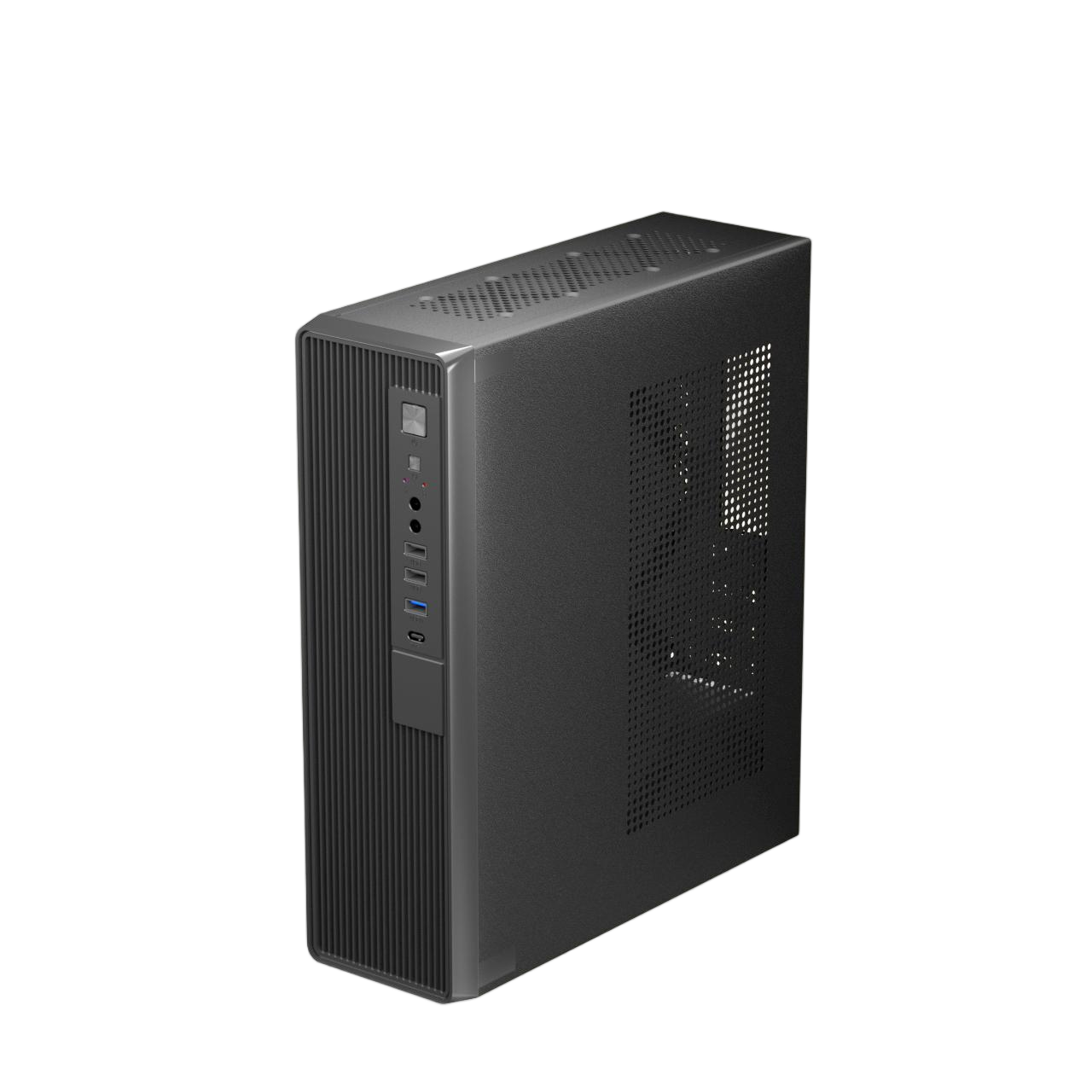

Mini PC M021. Compact desktop built around an ITX mainboard in a 290 x 97 x 330 mm chassis.
I/O. USB2.0*2+USB3.0*1+AUDIO/MIC.
Hardware configurations. The configuration list below shows the CPU, memory and storage combinations available. Contact us for pricing on the configuration you need.
