OEM / ODM · Mixed Container · Flexible MOQ
Compact ITX mini PC in a 196 x 193 x 47 mm chassis, Dual-Band Wi-Fi / BT, Windows 10 / 11 / Linux pre-installed, one-key recovery.
Send the model, quantity and destination port. We reply within one business day.
| Operating System | Windows 10 / Windows 11 / Linux, any language version, pre-installed on request |
|---|---|
| System Recovery | One-key recovery from a hidden partition (press F1 at boot), no disc or USB drive needed |
| Product Size (L x W x H) | 196 x 193 x 47 mm |
| Carton Size (L x W x H) | 372 x 80 x 250 mm |
| Net / Gross Weight | 1.53 kg / 1.75 kg |
| Motherboard Support | ITX |
| SSD Support | 2.5" x 1 |
| CPU Cooler Height Limit | 30 mm |
| Wireless | Wi-Fi 2.4 GHz / 5 GHz Dual Band / Bluetooth |
| Power Input | 100-240V |
| # | Model | CPU | Chipset | Memory | Storage |
|---|---|---|---|---|---|
| 1 | S1-01 | Intel Core i3-3220 | H61 | DDR3 1600 8 GB | 128 GB |
| 2 | S1-02 | Intel Core i5-3470 | H61 | DDR3 1600 8 GB | 256 GB |
| 3 | S1-03 | Intel Core i3-7100 | H110 | DDR3 1600 8 GB | 256 GB |
| 4 | S1-04 | Intel Core i3-8100 | H110 | DDR3 1600 8 GB | 256 GB |
| 5 | S1-05 | Intel Core i3-8100 | H110 | DDR3 1600 8 GB x 2 Dual-Channel | 256 GB |
| 6 | S1-06 | Intel Core i3-8100 | H110 | DDR3 1600 8 GB x 2 Dual-Channel | 512 GB |
| 7 | S1-07 | Intel Core i7-8700 | H110 | DDR3 1600 8 GB x 2 Dual-Channel | 512 GB |
| 8 | S1-08 | Intel Core i3-14100 | H610 | DDR4 3200 8 GB x 2 Dual-Channel | 512 GB |
Configurations are built to order. Send us the row you need and we will quote the quantity you are planning.

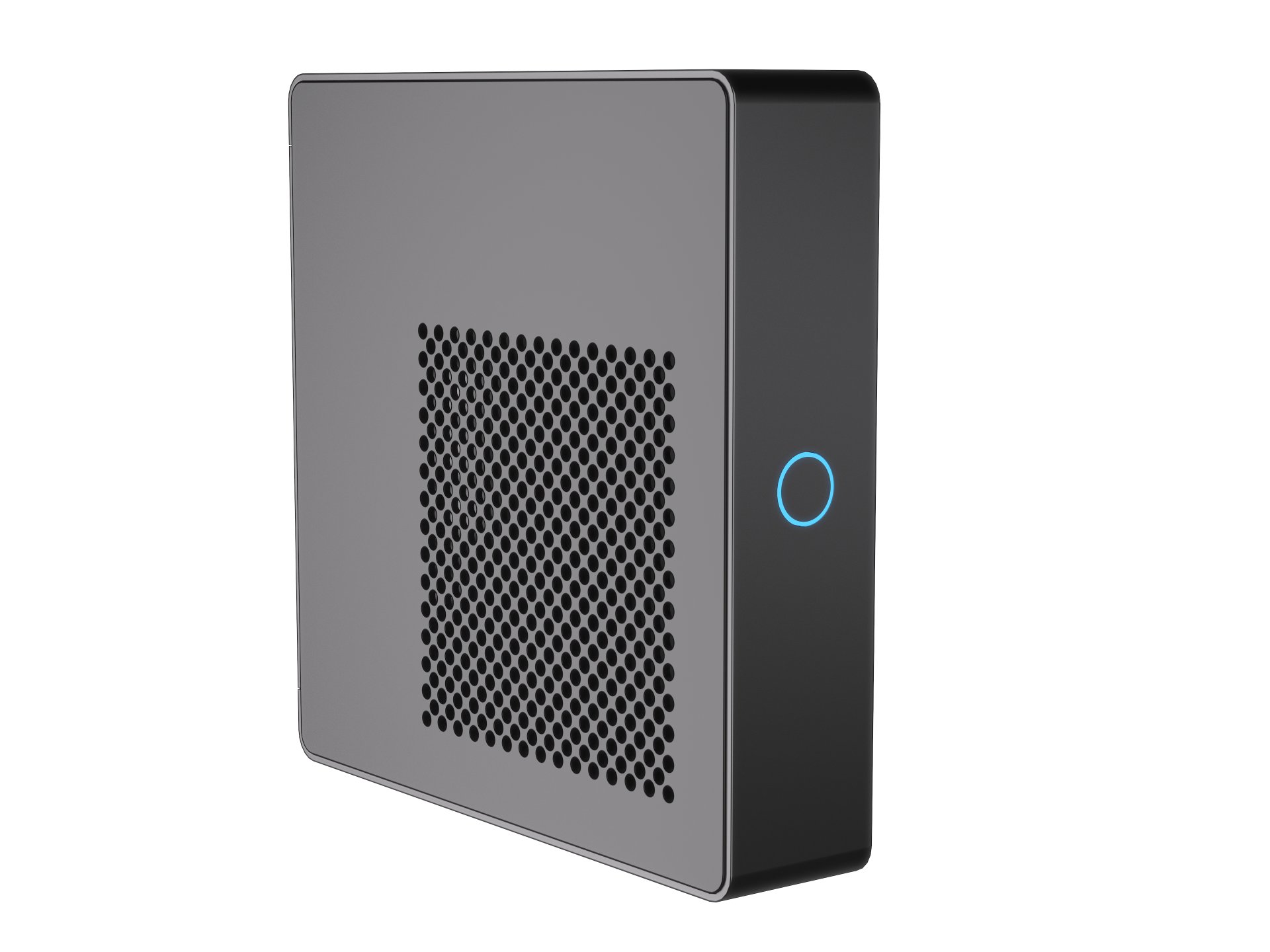

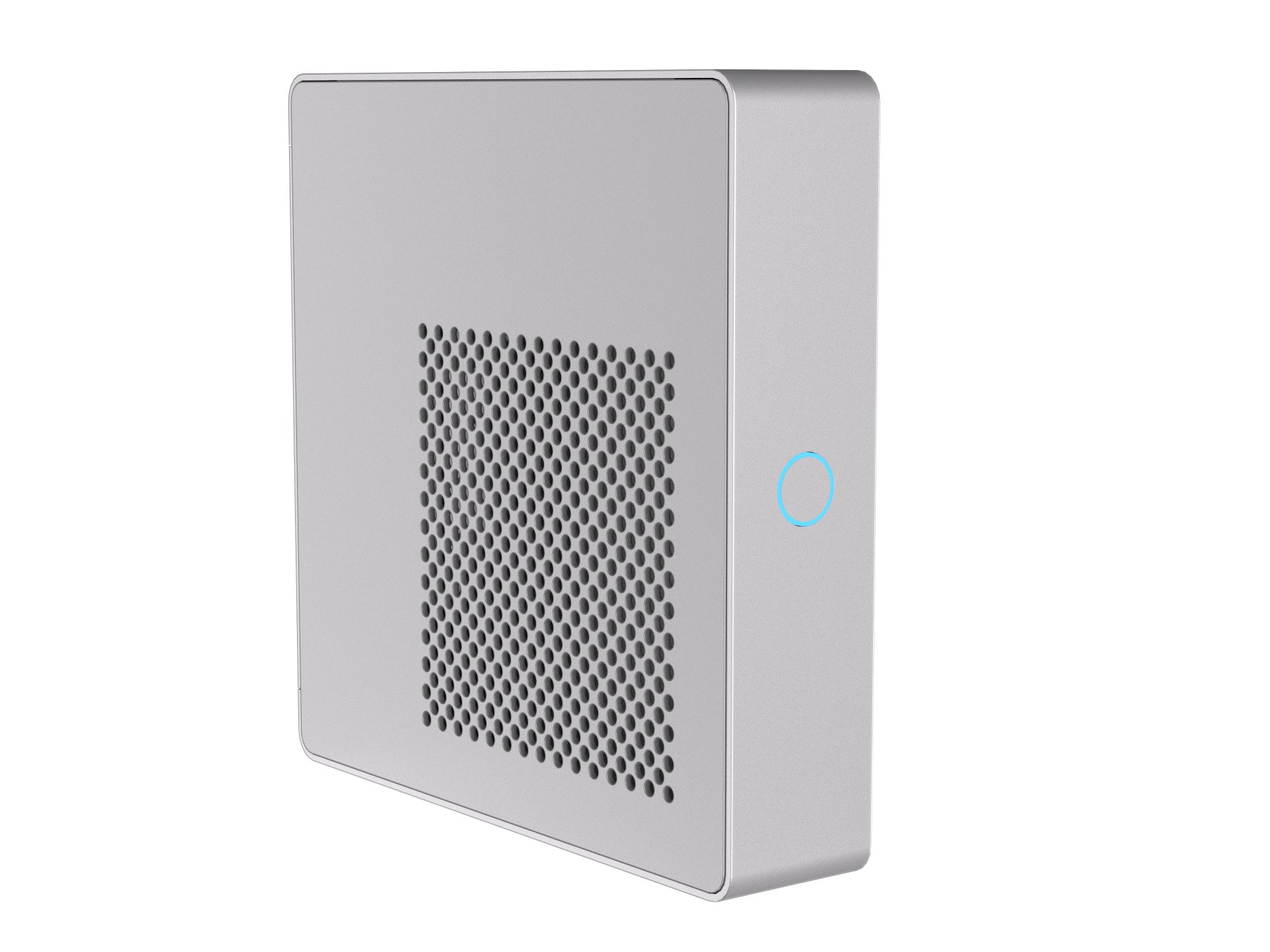

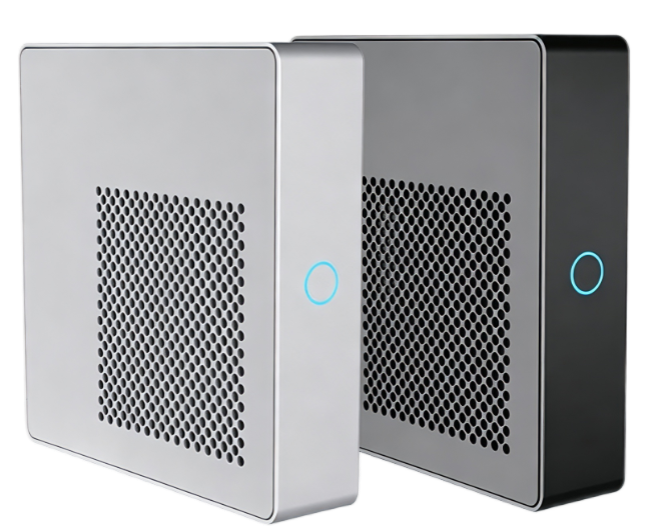

Mini PC S1 PRO. Compact desktop built around an ITX mainboard in a 196 x 193 x 47 mm chassis.
Operating system. Windows 10 / Windows 11 / Linux, any language version, pre-installed on request.
One-key recovery. One-key recovery from a hidden partition (press F1 at boot), no disc or USB drive needed.
Hardware configurations. The configuration list below shows the CPU, chipset, memory and storage combinations available. Contact us for pricing on the configuration you need.
